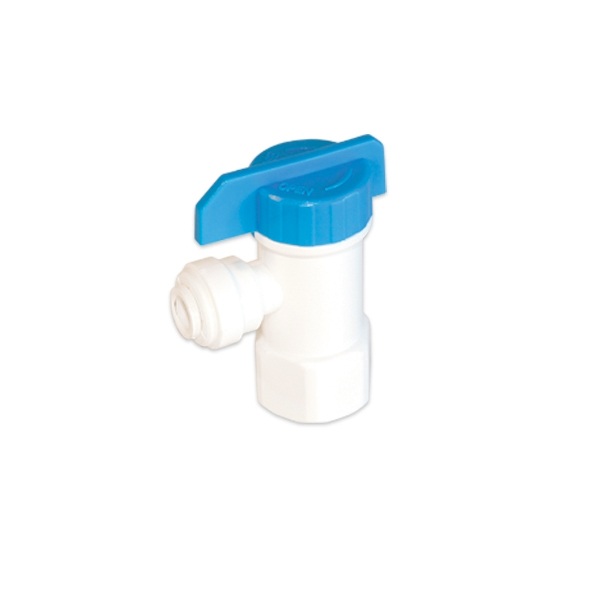

Tank valve

Valves for RO water storage tank for reversed osmosis systems. Made of high quality polypropylene. Provided with female ¼” NPT thread. Valve has two utter positions ie. opened and closed. It can be set in the middle position. It is compatible with most of the tanks available on market. There are two types available; with quick connector and with JACO system allowing to connect ¼” tubes.



Material used: PP
Connection: ¼”

Catalogue No Connection Working temperature Max. pressure
Q-CV1244 1/4Q x1/4GW 2 – 30 oC 6 bar
J-CV1244 1/4J x 1/4GW
